三位式氣動執行器是一種特殊規格的執行機構，提供了0°，45°，90°或0°，90°，180°的三位式操作方式。中間位置是依靠?jī)蓚�(gè)輔助活塞的移動產生的機械制動來實現的。中間位置是可調的。如90°行程的執行器能提供20°，30°，50°，70°等的中間位置。其工作原理中下：
Three position actuator provide an operation of 0°, 45°, 90°or 0° , 90°, 180°，The midway position is achieved by a mechanical stop of movement on the 2 auxiliary pistons. This midway stop positions adjustable. Example： 90°actuator can provide 20°, 30°, 40°, 50° , 70°etc. Following is the principle of operation：

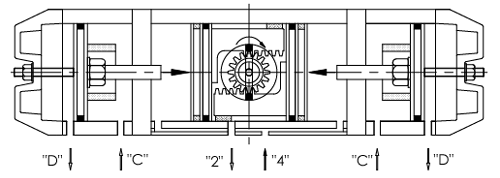

1，全關位置。如圖1所示，全閉位置是在氣源進入4口， 2口排出空氣后實現的。
1, Fully Closed Position
From chart 1 we can see that this position is obtained when air is supplied to port 4 and port 2 is in the state of exhaust air.

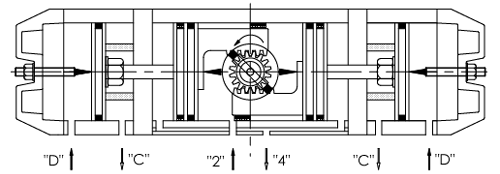

2，全開位置。如圖2所示，全開位置是在氣源同時進入2口和C口，4口和D口排出空氣后實現的。
2, Fully Open Position
From chart 2 we can see that this position is obtained when air is supplied to port 2 and port C, meantime, port 4 and port D are in the state of exhaust air.

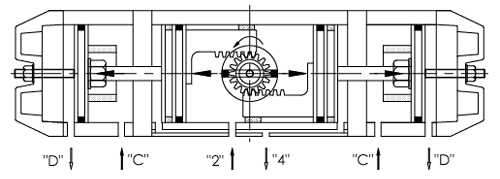

3，中間位置。如圖3所示，中間位置是在氣源分別進入2口和D口，4口和C口排出空氣后實現的。在實現中間位置的過程中，氣源供到D口，迫使輔助活塞向中心移動，推桿作為機械限位使內部活塞在設定的中間位置停止。
3, Midway Position
From chart 2 we can see that this position is obtained when air is supplied to port 2 and port D, meantime, port 4 and port C are in the state of exhaust air. In fact that the midway position is achieved by a mechanical stop of movement on the two auxiliary pistons.
